• As of today, 374 vendors and 100410 programmable devices are supported.

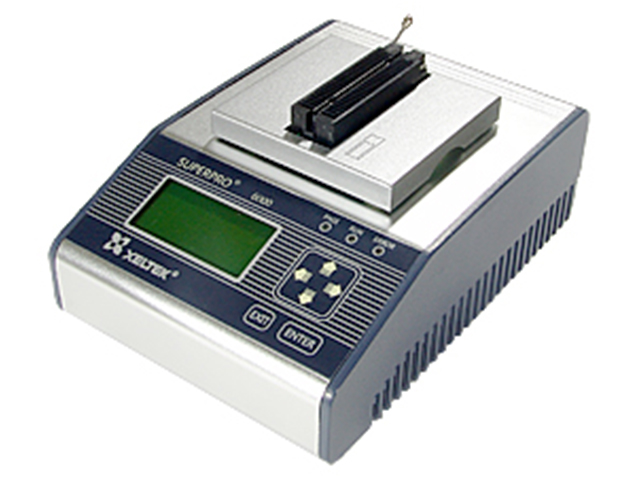

• SUPERPRO/6100 Smart Speed Programmer/Writer/Writer, with a 30% faster write speed than SUPERPRO 5000, suitable for highly productive users;
• Supports up to 256 GBytes file burning;
• 144-pin universal drive circuit. Only one adapter is required for packaging different chip types within 144 feet. Universal adapters ensure fast new device support.
• Directly supports various voltage devices from 1.2V to 5V.
• More advanced waveform drive circuit guarantees a very high success rate of burning. With the IC manufacturer's authentication algorithm, high-quality products can be guaranteed regardless of low-voltage devices, used devices, or low-quality devices. The programming result can choose high and low voltage verification to ensure long-lasting stability.
• In the online mode, the PC controls the programmer/writer/writer via the USB2.0 port (high speed). The debugging is convenient for R&D; the offline programmer/writer/writer relies on its own CPU and LCD. The display, removable memory (standard CF card) runs independently from the PC, is easy to operate, and easy to expand, making it ideal for mass production at the factory site. The CF card can store up to 100 project files according to the capacity.
• Automatic detection of chip mis-insertion and poor pin contact to avoid damage to the device.
• Perfect over-current protection function to avoid damage to the programmer.
• Abundant software features simplify operations, improve efficiency, avoid errors, and take care of users. The project saves the user's various operations and settings on the target device, including the device model setting, programming file loading, configuration bit setting, batch processing commands, etc., in the project file, one step at a time. Into the write operation, effectively reducing the probability of misuse. The project file can be set with a password to prevent data leakage. The Auto command allows the user to arbitrarily organize common command sequences such as erase, empty, program, verify, and encrypt into a single, one-step command. In mass production mode, once the chip is correctly inserted into the socket, the CPU will automatically start the batch command without manual key press. Standard serial number generation and insertion functions and can accept user-customized special serial number generators. Log files facilitate quality tracking.
• Supports Windows XP/Vista/Win7/Win8/Win10 operating systems.
