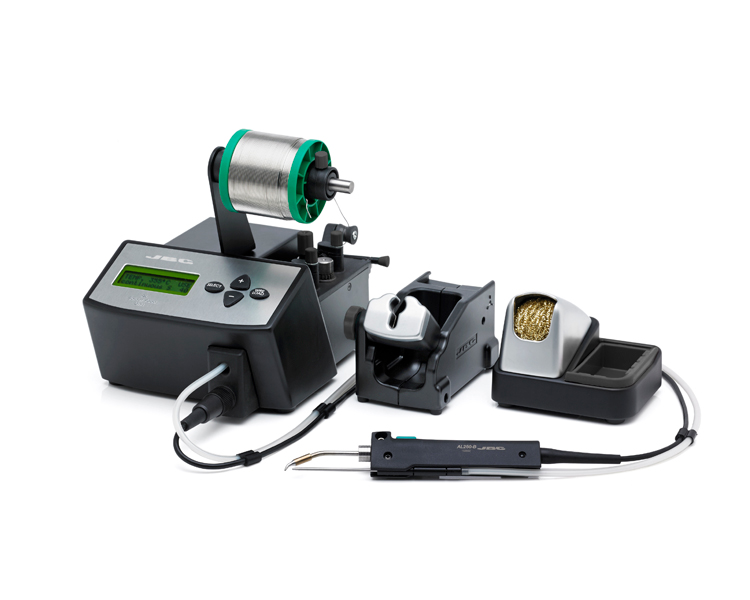

Automatic feed soldering station
This is the ideal solution for a wide range of welding applications and is the ideal solution for one-handed operation.
The AL welding station automates the welding process by sending solder wires.
Continuous or discontinuous operation modes can be selected.
It uses JBC's exclusive heating system, heating system, smart sleep and hibernation.
The AL workstation works with a comfortable automatic soldering soldering product. The AL250 soldering product applies to the C250 tip.
■ AL Manual download.pdf
Product Accessories
Control host AL CONTROL UNIT

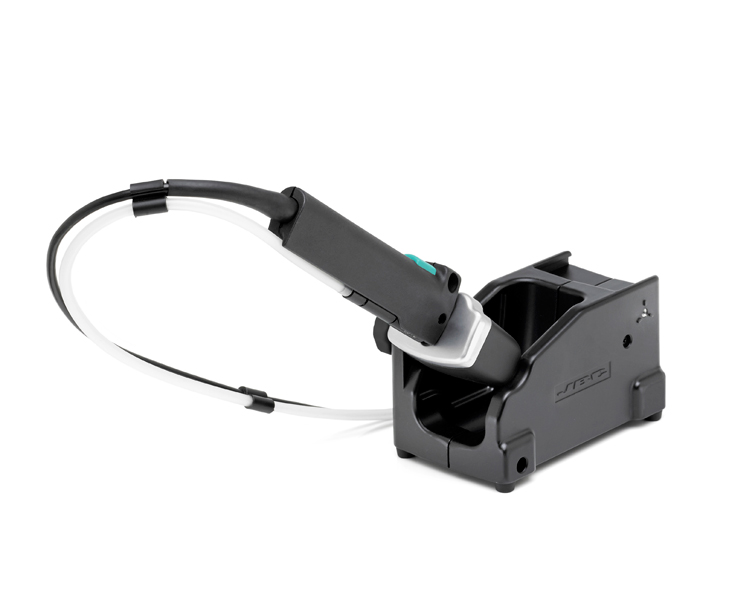

Tool Automatic Feed Handle

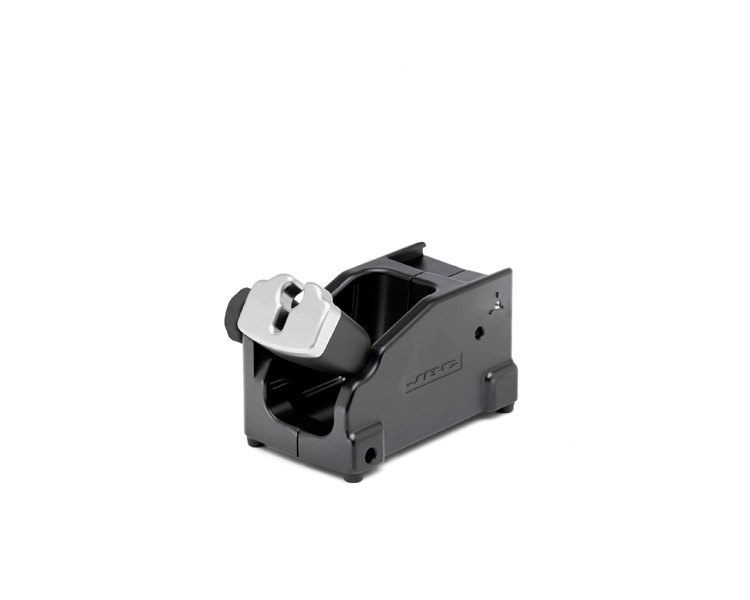

Soldering station AL250 tool holder
Soldering Iron Head Curved Iron Head Ø1,0
Cleaning System Welding nozzle cleaning machine, anti-static
Technical elements
Ambient operating temperature: 10-40 C / 50-104 F
Solder volume: up to 2Kg
Wire diameter: 0.4-1.8 mm / 0.02-0.07 in
Input fuses: 1A (230V), 2A (120V and 100V)
Peak output power: 130W / 23.5V
Package size: 368 x 368 x 195 mm
Package weight: 6.72 kg
Size: 195x200x240 mm
Speed: 17 mm/s (max) / 0.67 in (max)
Temperature selection: 90-450 C / 190-840 F
Tip and ground resistance:<2 ohms
Voltage between tip and ground:<2mV RMS
Voltage: 230V / 120V / 100V
Weight: 5.81 kg
Wire length: 1 - 60 mm / 0.04 - 2.36 in
