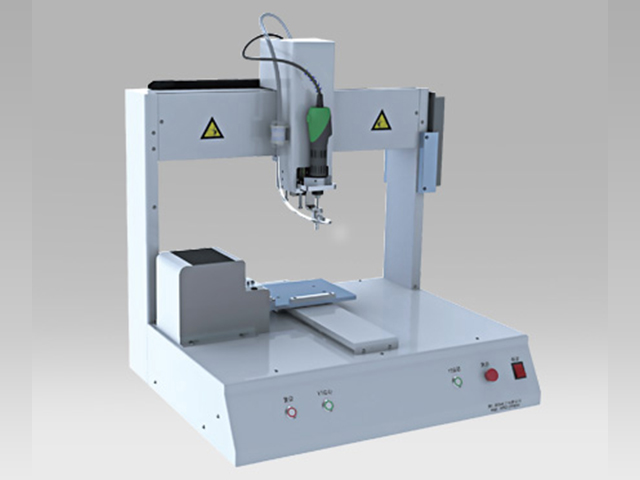

Single-position automatic screw locking machine (suction type)

发布时间： 2018 - 06 - 10

价格：

0

市场价：

56800

¥

55800

• it can detect sliding teeth, leakage lock and floating lock, and the torque can be adjusted;• fast locking speed, 1.2 seconds/piece;• simple operation to manage several machines at the same time;• strong versatility. Replace screw conveying module, suction nozzle and batch head, which can adapt to M1.0~M3 screw locking;• convenient to switch the working mode with the assembly line before and after operation to realize the impersonal operation;• support USB interface.

查看更多>>
Double position automatic screw locking machine (blow type)

发布时间： 2018 - 06 - 10

价格：

0

市场价：

56800

¥

55800

• wide range of applications, can lock two different screws at the same time;• it can detect sliding teeth, leakage lock and floating lock, and the torque can be adjusted;• fast locking speed, 1.2 seconds/piece;• simple operation to manage several machines at the same time;• strong versatility. Replace screw conveying module, suction nozzle and batch head, which can adapt to M1.0~M3 screw locking;• convenient to switch the working mode with the assembly line before and after operation to realize the impersonal operation;• support USB interface.

查看更多>>
Double station single supply automatic screw locking machine (suction type)

发布时间： 2018 - 06 - 10

价格：

0

市场价：

56800

¥

55800

• it can detect sliding teeth, leakage lock and floating lock, and the torque can be adjusted;• fast locking speed, 1.2 seconds/piece;• simple operation to manage several machines at the same time;• strong versatility. Replace screw conveying module, suction nozzle and batch head, which can adapt to M1.0~M3 screw locking;• convenient to switch the working mode with the assembly line before and after operation to realize the impersonal operation;• support USB interface.

查看更多>>
Double-station double-supply automatic screw locking machine (suction type)

发布时间： 2018 - 06 - 10

价格：

0

市场价：

56800

¥

55800

• wide range of applications, can lock two different screws at the same time;• it can detect sliding teeth, leakage lock and floating lock, and the torque can be adjusted;• fast locking speed, 1.2 seconds/piece;• simple operation to manage several machines at the same time;• strong versatility. Replace screw conveying module, suction nozzle and batch head, which can adapt to M1.0~M3 screw locking;• convenient to switch the working mode with the assembly line before and after operation to realize the impersonal operation;• support USB interface.

查看更多>>

Product introduction
Product parameters
Scope of application
Commodity Reviews

• it can detect sliding teeth, leakage lock and floating lock, and the torque can be adjusted;
• fast locking speed, 1.2 seconds/piece;
• simple operation to manage several machines at the same time;
• strong versatility. Replace screw conveying module, suction nozzle and batch head, which can adapt to M1.0~M3 screw locking;
• convenient to switch the working mode with the assembly line before and after operation to realize the impersonal operation;
• support USB interface.

电源/气源	220V AC 50Hz / 0.4~0.6Mpa
自动螺丝刀参数	0.2~3.5、0.5~7、1~10、1.5~12、3~17 可选配（根据螺丝刀不同可选可调扭力）
气吸式螺丝供给机参数	M1.0、M1.2、M1.4、M1.7、M2.0、M2.3、M2.6、M3.0 可选配（出厂根据客户螺丝而定）
电机控制轴数	三轴
适应锁附产品规格	320×280×60mm（X×Y×Z）可锁附沉孔＜20mm（需更换部件）
轴动范围	X轴0.1~800 mm/s、Y轴0.1~800 mm/s、Z轴0.1~500 mm/s
轴动速度	X轴0.1~800 mm/s、Y轴0.1~800 mm/s、Z轴0.1~500 mm/s
重复位置精度	X轴±0.05 mm、Y轴±0.05 mm、Z轴±0.05 mm
分辨率	X轴0.01 mm、Y轴0.01 mm、Z轴0.01 mm
负载重量	工作台6 Kg、机台3 Kg
控制速度方式	速度可设置
式教文件容量	128M（120个文件单文件64个点）
控制及编程方式	运动控制器+触摸屏+教导式
使用环境	温度0~40°、湿度20%~90%
外形尺寸	630×528×680mm（L×W×H）
重量	约70Kg

产品名称：
Single-position automatic screw locking machine (suction type)

上市日期： 2018-06-10
