      Off-line vacuum double liquid gluing machine is a combination of double liquid gluing system and vacuum infusion system. The two-fluid system is controlled by PLC and the ratio of metering pump is controlled by cylinder and stepping motor. The glue storage tank for glue can be equipped with functions such as heating, stirring, vacuuming, and automatic glue adding. The dispensing valve adopts static or dynamic stirring to make the glue evenly mixed.Vacuum box made of precision 25MM thick aluminum plate, airtight. There is a transparent glass window on the door, which can easily see the processi...
    • 发布时间: 2018 - 06 - 10
      价格:
      0
      市场价:
      56800
      ¥
      55800
      FL-P20 automatic vacuum stocking system is an automatic system that integrates glue processing and feeding. It can handle different single and two-component glues like silicone, epoxy, and polyurethane.The FL-P20 vacuum stocking system eliminates the influence of the external environment on the glue itself by creating a high-vacuum environment, so that the glue that easily reacts with air or easily absorbs air moisture is sealed. This creates a priority for high-quality injection molding, even for certain types of glue. At the same time, the constant vacuum environment can effectively defoam t...
    • 发布时间: 2018 - 06 - 10
      价格:
      0
      市场价:
      56800
      ¥
      55800
    • 发布时间: 2018 - 06 - 10
      价格:
      0
      市场价:
      56800
      ¥
      55800
      The FL-D36 high-precision piston metering head is a versatile metering system that can handle all types of watering and can handle different single and two-component glues like silicone, epoxy, and polyurethane.The FL-D36 high-precision piston metering head controls the proportion of glue by measuring volume and is suitable for handling single and double component materials. According to the required amount of glue injection and mixing ratio, select the accurate size and volume of the measuring cylinder. When the two-component material is fed, the proportion of the glue is kept constant throug...
    • Product introduction
    • Product parameters
    • Scope of application
    • Commodity Reviews

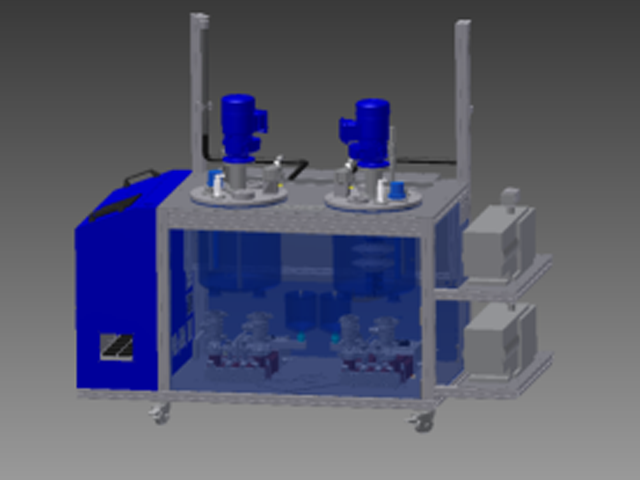

    • FL-P20 automatic vacuum stocking system is an automatic system that integrates glue processing and feeding. It can handle different single and two-component glues like silicone, epoxy, and polyurethane.


      The FL-P20 vacuum stocking system eliminates the influence of the external environment on the glue itself by creating a high-vacuum environment, so that the glue that easily reacts with air or easily absorbs air moisture is sealed. This creates a priority for high-quality injection molding, even for certain types of glue. At the same time, the constant vacuum environment can effectively defoam the glue in a long-term and stable manner, remove the air and water vapor in the early glue when the glue is encapsulated, and greatly improve the glue injection performance of the glue.


    • 尺寸参数

      10L/10L

      10L/20L

      20L/20L

      45L/45L

      60L/45L

      60L/60L

      长度mm

      1634

      1634

      1634

      1634

      1634

      1634

      宽度mm

      700

      700

      700

      700

      700

      700

      高度mm

      1690

      1690

      1690

      1690

      1690

      1690

      电控箱高度mm

      980

      980

      980

      980

      980

      980

      重量kg

      300

      320

      350

      400

      420

      450

      输入参数

      10L/10L

      10L/20L

      20L/20L

      45L/45L

      60L/45L

      60L/60L

      气源最低压力bar

      6bar

      设备耗气量L/min

      不大于40

      供电需求

      三项380V50Hz

      供电容量KW

      不大于8

      真空泵参数

      10L/10L

      10L/20L

      20L/20L

      45L/45L

      60L/45L

      60L/60L

      抽气速度L/S

      2

      2

      2

      2

      2

      2

      最低真空值mbar

      2

      2

      2

      2

      2

      2

      搅拌电机参数

      10L/10L

      10L/20L

      20L/20L

      45L/45L

      60L/45L

      60L/60L

      电机功率w

      直流80

      直流80

      直流80

      交流180

      交流180

      交流180

      电机配合减速机转速rad/min

      39

      39

      39

      39

      39

      39

    • 产品名称:

      Vacuum stock preparation system

      上市日期: 2018-06-10
