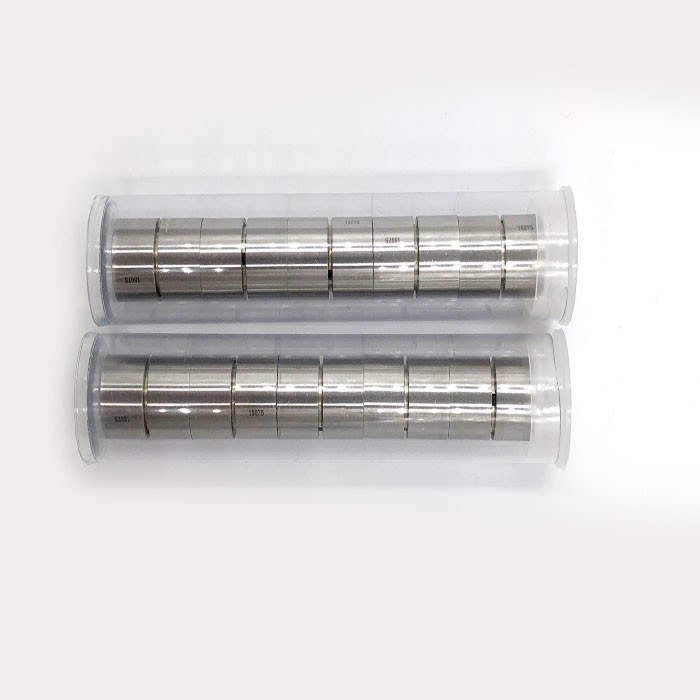

WALDRICH磨床备件号：7-0502494 5/8 DIA 15.88X25.4
12.8630.00851 测量设备 7.0502494 自由弯曲枢轴 5020/600(5020-600) 5/8' Dia. 15.88X25.4
备件号:6206627 free flex pivot 5020/600 Riverhawk
Cantilevered (Single-Ended) Pivot Bearings
![c-flex 272468785]( "c-flex 272468785")
Cantilevered Pivot Bearing Cutaway
|
Pivot Characteristics Chart
Use the Pivot Characteristics Chart below in combination with our life cycle curves to determine the proper pivot for your application. Click here to see an example of how to choose the right pivot.
Nominal
Outside
Diameter
(Inch)
D
+0.0000
-0.0005 | Torsional
Spring
Rate
(in-lb)
(Degree)
See Note 2 | Radial Load
Capacity
(Pounds)
Load at Center
of 'A'
See Note 1 | Axial
Load
Capacity
(Pounds) | ![c-flex 272468785]( "c-flex 272468785")
| Catalog
Number |
Vc | Vt | Pa | L
±0.003 | A
±0.005 | Series 5000
Cantilevered |
0.1250 | 0.0140 | 25.5 | 25.5 | 24.5 | 0.200 | 0.095 | 5004-400 |
0.0017 | 8.9 | 13.0 | 12.3 | 5004-600 |
0.0002 | 1.0 | 3.7 | 5.9 | 5004-800 |
0.1562 | 0.0279 | 39.5 | 39.5 | 38.7 | 0.250 | 0.120 | 5005-400 |
0.0035 | 13.8 | 20.0 | 19.4 | 5005-600 |
0.0004 | 1.5 | 6.0 | 9.7 | 5005-800 |
0.1875 | 0.0473 | 56.0 | 56.0 | 56.4 | 0.300 | 0.142 | 5006-400 |
0.0057 | 19.8 | 28.0 | 27.9 | 5006-600 |
0.0037 | 12.2 | 20.2 | 24.4 | 5006-660 |
0.0007 | 2.1 | 8.0 | 13.9 | 5006-800 |
0.2500 | 0.1141 | 101.0 | 101.0 | 99.0 | 0.400 | 0.190 | 5008-400 |
0.0143 | 35.5 | 51.0 | 49.4 | 5008-600 |
0.0018 | 3.7 | 14.5 | 24.7 | 5008-800 |
0.3125 | 0.2234 | 158.0 | 158.0 | 154.0 | 0.500 | 0.238 | 5010-400 |
0.0286 | 55.0 | 79.0 | 77.5 | 5010-600 |
0.0036 | 5.8 | 23.0 | 38.8 | 5010-800 |
0.3750 | 0.3840 | 228.0 | 228.0 | 223.0 | 0.600 | 0.285 | 5012-400 |
0.0480 | 80.0 | 114.0 | 112.0 | 5012-600 |
0.0058 | 8.4 | 32.8 | 55.4 | 5012-800 |
0.5000 | 0.9080 | 403.0 | 403.0 | 392.0 | 0.800 | 0.380 | 5016-400 |
0.1134 | 141.0 | 202.0 | 196.0 | 5016-600 |
0.0142 | 14.6 | 58.0 | 98.0 | 5016-800 |
0.6250 | 1.8500 | 634.0 | 634.0 | 615.0 | 1.000 | 0.475 | 5020-400 |
0.2321 | 222.0 | 317.0 | 308.0 | 5020-600 |
0.0295 | 23.0 | 93.0 | 155.0 | 5020-800 |
0.7500 | 3.1800 | 910.0 | 910.0 | 884.0 | 1.200 | 0.570 | 5024-400 |
0.3980 | 318.0 | 455.0 | 442.0 | 5024-600 |
0.0500 | 33.0 | 130.0 | 221.0 | 5024-800 |
1.0000 | 7.5200 | 1620.0 | 1620.0 | 1570.0 | 1.600 | 0.770 | 5032-400 |
0.9390 | 567.0 | 815.0 | 785.0 | 5032-600 |
0.1175 | 60.0 | 236.0 | 392.0 | 5032-800 |
Notes: 1. Pounds at zero deflection based on pure radial load. Performance of pivot is a function of number of cycles, angular travel, and loading. Must use life cycle curves for selection of proper pivot. When the load is applied directly through a single spring, multiply capacity by 0.707. 2. At zero load, Torsional Spring Rate may change with radial load. |
Riverhawk 所有轴承型号： |
|
|
|
|
|
|
|
5004-400 | 5005-400 | 5006-400 | 5008-400 | 5010-400 | 5012-400 | 5016-400 | 5020-400 | 5024-400 | 5032-400 |
5004-600 | 5005-600 | 5006-600 | 5008-600 | 5010-600 | 5012-600 | 5016-600 | 5020-600 | 5024-600 | 5032-600 |
5004-800 | 5005-800 | 5006-800 | 5008-800 | 5010-800 | 5012-800 | 5016-800 | 5020-800 | 5024-800 | 5032-800 |
|
|
|
|
|
|
|
|
|
|
6004-400 | 6005-400 | 6006-400 | 6008-400 | 6010-400 | 6012-400 | 6016-400 | 6020-400 | 6024-400 | 6032-400 |
6004-600 | 6005-600 | 6006-600 | 6008-600 | 6010-600 | 6012-600 | 6016-600 | 6020-600 | 6024-600 | 6032-600 |
6004-800 | 6005-800 | 6006-800 | 6008-800 | 6010-800 | 6012-800 | 6016-800 | 6020-800 | 6024-800 | 6032-800 |
