    • High power soldering station（HDE）
      High power soldering station（HDE）
      发布时间： 2018 - 06 - 20
      价格：
      0
      市场价：
      1400
      ¥
      0
      Heavy duty workstationIt is an ideal solution for high thermal conductivity requirements or long-time soldering applications, such as the production of solar panels, multilayer circuits, and large heat-dissipating surfaces.It comes with JBC's unique heating system and smart sleep and sleep features.It has all the advantages of an excellent series.The Easy Operation Manual provides innovative features that help you monitor work in real time, such as graphics or partial soldering stations.This soldering station is compatible with the T470 Comfort Handle and C470 Soldering Iron HeadDoes not i...
      查看更多>>
    • Product introduction
    • Product parameters
    • Scope of application
    • Commodity Reviews

    • ■ CL6166_MANUAL Download.pdf


      ■ HD_SD_MANUAL Download.pdf


      ■ HDE-BUC_MANUAL Download.pdf


      ■ T210-T245_MANUAL Download.pdf

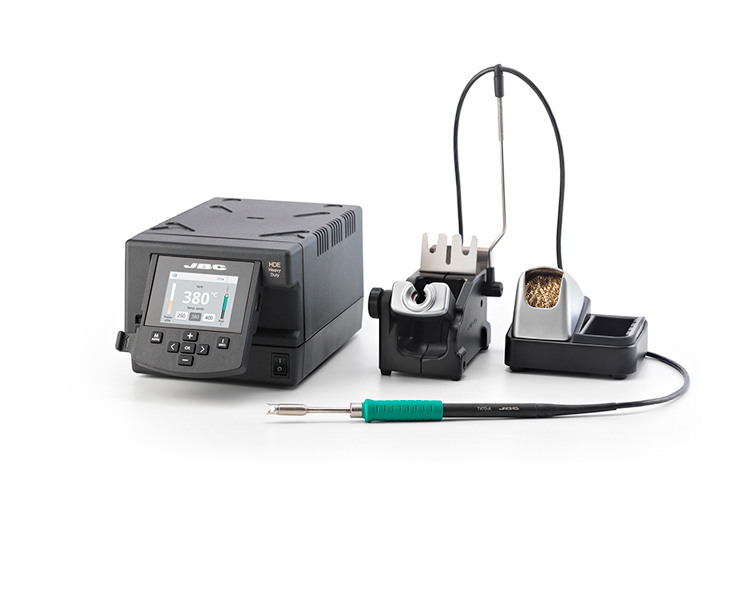

      Heavy duty workstation

      It is an ideal solution for high thermal conductivity requirements or long-time soldering applications, such as the production of solar panels, multilayer circuits, and large heat-dissipating surfaces.

      It comes with JBC's unique heating system and smart sleep and sleep features.

      It has all the advantages of an excellent series.

      The Easy Operation Manual provides innovative features that help you monitor work in real time, such as graphics or partial soldering stations.

      This soldering station is compatible with the T470 Comfort Handle and C470 Soldering Iron Head

      Does not include tip.

      High power soldering station（HDE）

    • Product Accessories

      Control Host HDE CONTROL UNIT

      Heavy Duty Handle

      Soldering station T470 special tool holder

      Cleaning System Welding nozzle cleaning machine, anti-static

      Technical elements

      Ambient operating temperature: 10-40 C (50-104 F)

      Communication Connector: USB-A / USB-B / Peripherals

      Size: 145 x 120 x 225 mm

      Idle temperature. Stability (still air): 1.5 C (3 F)

      Input fuse: 4A / 2A / 4A

      Peak output power: 250W

      Package size: 368 x 368 x 195 mm

      Package Weight: 6.95 kg

      Robot Connector: RJ12 for RS-232 protocol

      Temperature selection: 90-500 C (190-932 F)

      Tip and ground resistance:<2 ohms

      Voltage between tip and ground:<2 mV RMS

      Voltage: 120V / 230V / 100V

      Weight: 6.10 kg
    • 产品名称：

      High power soldering station（HDE）
      上市日期： 2018-06-20
