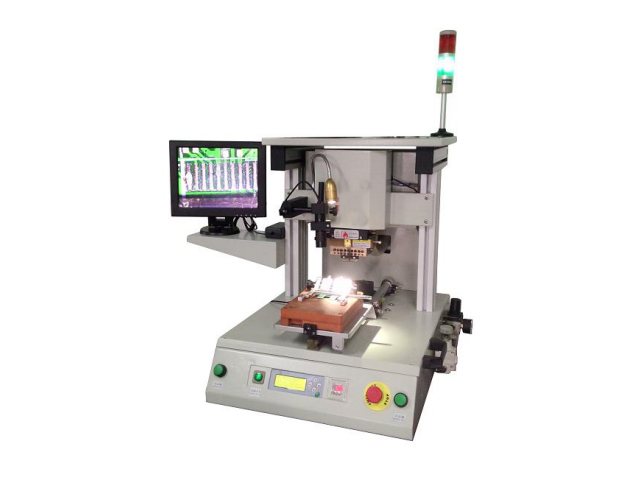

Single welding single-site hot-press welding

发布时间： 2018 - 06 - 11

价格：

0

市场价：

8999

¥

0

Machine features:1. For different products, heating speed can be selected2. Titanium alloy pressure head to ensure that the average temperature, fast heating and service life expertise3. Indenter particularly adjustable design level to ensure that the pressure components on average4. Temperature CNC, clear and precise5. Equipped with digital pressure gauge, preset pressure range

查看更多>>
Single welding double hot press welding machine (rotating station)

发布时间： 2018 - 06 - 11

价格：

0

市场价：

8999

¥

0

1. According to different products, heating rate for selection.2. Special materials welding head, to ensure that the average product pressure.3. With a vacuum function, adjust the alignment easier.4. Temperature CNC, clear and precise.5. Equipped with digital pressure gauge, preset pressure range.6. Microcomputer control, accurate and stable7. Programmable curves include preheat and reflow temperature8. Suitable for all kinds of high-density TAB, TCP crimp and FPC, FFC and PCB solder crimp9. Vibration, low noise, the voltage does not fluctuate.10. Welding head uses molybdenum alloy instead of ...

查看更多>>
Double welding head double station (pulling station) hot pressure welding machine

发布时间： 2018 - 06 - 11

价格：

0

市场价：

8999

¥

0

1. According to different products, the heating rate can be adjusted.2. Welding joints of special materials to ensure that the products are under pressure.3. With vacuum function, it is easier to adjust the alignment.4. The temperature is numerically controlled and clear and precise.5. A digital pressure gauge is available to preset the pressure range.6. Microcomputer control, precise and stable7. Programmable curves including preheat and reflow temperatures8. Suitable for a variety of high-density TAB, TCP crimp and FPC, FFC and PCB solder crimp9. Vibration is small, noise is low, voltage doe...

查看更多>>

Product introduction
Product parameters
Scope of application
Commodity Reviews

Machine features:
1. For different products, heating speed can be selected
2. Titanium alloy pressure head to ensure that the average temperature, fast heating and service life expertise
3. Indenter particularly adjustable design level to ensure that the pressure components on average
4. Temperature CNC, clear and precise
5. Equipped with digital pressure gauge, preset pressure range

规格型号Specification&Model		FLPP-1A
外观空间尺寸Outside dimensions		700mm×800mm×950mm
重量 Weight		90Kg
电源/最大功率 Power source		AC 220V 50Hz 2000VA
气源 Air		洁净 0.45-0.70Mpa
外接气管直径External tracheal diameter		8mm
工作环境 Working environment		0-40℃ 湿度20-90%（无凝结）
允许最小桌面尺寸 Allow minimum desktop size		490mm×430mm
压头尺寸Indenter size		脉冲加热式，材质为TC4，尺寸根据产品订制Pulse heating, material for the TC4, size according to product customization
热压头平整度Hot head flatness		±0.05mm
传感器类型sensor type		K型
温度控制temperature control		两段升温，Two heating 25℃-500℃
温度均匀性Temperature uniformity		±2℃
时间控制time control		1S-99S可调
驱动系统 Drive system		步进电机、同步带Stepping motor, timing belt
工作幅面 Workpiece size	X-axis	200
	Y-axis	150
工作台最大载重Maximum weight		10Kg
液晶监视器LCD monitor		选配
CCD		选配

产品名称：
Single welding single-site hot-press welding

上市日期： 2018-06-11
