    • 发布时间: 2018 - 06 - 11
      价格:
      0
      市场价:
      0
      ¥
      0
      Integrated selection of solder system1 all-in-one model2 modular design, SMEMA online shipping3 Full computer control4 high quality welding, significantly improve the welding pass rate
    • 发布时间: 2018 - 06 - 11
      价格:
      0
      市场价:
      0
      ¥
      0
      Off-line selection of solder system1. Full-featured off-line model, covers a compact space2.PCB board movement, spray and welding platform fixed3. Full computer control, minimal programming4 high welding quality
    • 发布时间: 2018 - 06 - 11
      价格:
      0
      市场价:
      0
      ¥
      0

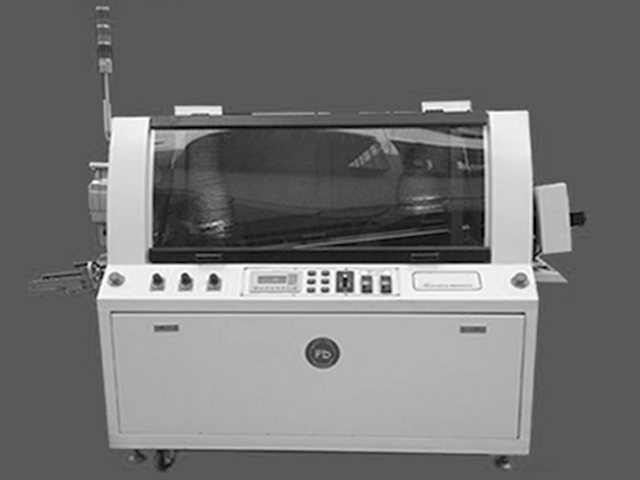

      Single nozzle selection welding1.The nozzles are made of non-clogging structure;2.Spraying and welding parts are used CNC equipment accurate operation;3.Production cycle: a cycle 25S;4.With preheating function, the entire process to fully meet the lead-free soldering and lead soldering process;Ultra-fast selection of welding
    • Product introduction
    • Product parameters
    • Scope of application
    • Commodity Reviews
    • 1. Suitable for reflow soldering or extremely difficult to weld the length of the foot device welding, streamlined design, beautiful appearance;

      2. Preheating zone and filtration system are used directly pull-out modular structure for easy maintenance and cleaning;

      3. Preheat time adjustable, preheat curve stable, PCB evenly heated;

      4 using automatic tracking spray system, the required welding point spray;

      5. Spray time automatically adjust;

      6. Built-in flux nozzle automatic cleaning system, long-term use without cleaning;

    • PCB尺寸Board Size(L*W)


      80*60~350*350mm


      机器尺寸Machine Size


      2020*1660*1470mm


      接驳高度Connection height


      900mm


      工作模式Work Mode


      PCB固定,锡炉移动PCB fixed,Nozzle removable


      允许零件高度Element Height


      25mm both A and B side


      锡嘴数量Tin Nozzle


      1pcs


      焊锡速度Speed of Welding


      单点0.5-3秒/点,连续焊锡1-6秒/段(不含进出板时间)
      0.5-3s/single point,1-6s/sect(except time of board in and out)


      焊接生产工艺Welding production process


      喷点和焊点可以做偏移,线或连线可做前后焊接补偿Spots and solder joints can be offset, before or after the line or connection can be welded to compensate


      编程方式Programme Mode


      独创CCD扫描直视编程Original CCD scanning direct programming


      生产路径Production path


      生产路径自动优化,节约生产Automatic production path optimization, saving production




      时间time


      锡槽Solder Tank material


      316不锈钢 stainless steel 316


      锡槽容量Solder


      20Kg


      波峰高度Wave crest height


      0-10mm can be adjust


      氮气装置N2 Protection set


      0.25Mpa±0.1Mpa


      红外预热 Infrared preheating


      时间与温度控制PID加热Time and temperature control PID heating


      喷涂系统Spray system



      喷液柱Spray column


      喷涂定义 Spray definition


      喷点大小可定义Dot size can be defined


      喷头数量
      Tin Nozzle Qty


      1个
      1pcs for standard


      Flux流量控制Flux controller


      恒定压力控制
      Constant pressure control


      Flux 容量Flux capacity


      1Kg


      焊接控制Welding control


      伺服
      servo


      运输方向 Transfer direction


      左进右出 Left to right


      功率power


      10kw


      电源AC power


      3ф380V


      气压air pressure


      2~3kgf


      净重Net Weight


      820Kg


      控制方式Control Mode


      电脑+PLC
      Computer+PLC


      保修期Warranty period


      1 Years


    • 产品名称:

      Single nozzle selection welding

      上市日期: 2018-06-11
