      Integrated selection of solder system1 all-in-one model2 modular design, SMEMA online shipping3 Full computer control4 high quality welding, significantly improve the welding pass rate
    • 发布时间: 2018 - 06 - 11
      价格:
      0
      市场价:
      0
      ¥
      0
      Off-line selection of solder system1. Full-featured off-line model, covers a compact space2.PCB board movement, spray and welding platform fixed3. Full computer control, minimal programming4 high welding quality
    • 发布时间: 2018 - 06 - 11
      价格:
      0
      市场价:
      0
      ¥
      0
      Single nozzle selection welding1.The nozzles are made of non-clogging structure;2.Spraying and welding parts are used CNC equipment accurate operation;3.Production cycle: a cycle 25S;4.With preheating function, the entire process to fully meet the lead-free soldering and lead soldering process;Ultra-fast selection of welding
    • Product introduction
    • Product parameters
    • Scope of application
    • Commodity Reviews

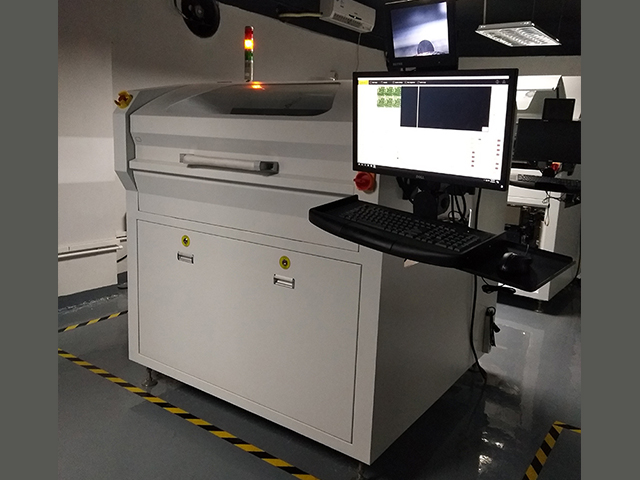

    • Integrated selection of solder system

      1 all-in-one model

      2 modular design, SMEMA online shipping

      3 Full computer control

      4 high quality welding, significantly improve the welding pass rate


      Product Description:

      1. The nozzles are made of non-clogging structure;

      2. Spraying and welding parts are used CNC equipment accurate operation;

      3 production cycle: a cycle of 25S;

      4. Preheating function, the entire process to fully meet the lead-free soldering and lead soldering process;

    • 机器总体Overall machine

      机器尺寸Machine size


      L1500mm X W1450mm X H1700mm

      机器总功率 Machine power


      7kw

      机器运行功率Machine operating power


      2--4kw

      电源Power supply


      单相220V 50HZ

      净重net weight


      700KG

      空气源压力要求

      Air source pressure requirements


      3-5 Bars

      空气源流量要求

      Air source flow requirements


      8-12L/min

      氮气源压力要求

      Nitrogen source pressure requirements


      3-4 Bars

      氮气源流量要求

      Nitrogen source flow requirements


      大于2立方/小时

      氮气源纯度要求Nitrogen source purity requirements


      》99.99%

      抽风量要求Exhaust volume requirements


      500--800CMB/H

      治具与 PCB板Fixture and PCB board

      治具Fixture


      可根据需要使用 Use as needed

      治具最大尺寸Fixture the largest size


      L400 X W400MM

      最大焊接面积The maximum welding area


      L400 X W400MM

      PCB厚度PCB thickness


      0.2mm-----6mm

      PCB板板边PCB board edge


      3mm以上

      控制与运输Control and transport

      控制系统Control System


      工控机电脑 IPC computer

      运输宽度Delivery width


      50-400MM

      运输方式

      Mode of transport


      滚轮运输式 SUS roller

      运输厚度Transport thickness


      1.5---4mm(板边厚或治具边厚)

      PCB运输方向PCB shipping direction


      从左到右水平运输

      PCB板上净空PCB board clearance


      50MM

      PCB板下净空PCB board clearance


      30MM

      运输承重Load bearing


      <5kg

      运输导轨Transport rails


      铝轨加工 Aluminum rail processing

      运输高度Transport height


      900+/-30mm

      运动轴Axis of movement


      X, Y, Z

      运动控制sport control


      闭环伺服控制  Closed-loop servo control

      运动马达Sports motor


      松下电机与伺服 Matsushita Electric and servo

      滚珠丝杆Ball screw rod


      上银On the silver

      定位精度positioning accuracy


      + / - 0.05 mm

      机架类型Rack type


      钢构焊接 Steel welding

      松香管理Rosin management

      喷雾喷嘴Spray nozzle


      微量雾化阀或喷射阀

      Micro-atomizing valve or injection valve

      喷雾耐用性Spray durability


      不锈钢stainless steel

      助焊剂容量Flux capacity


      1L

      助焊剂容器Flux container


      压力罐 pressure tank

      酒精容量Alcohol volume


      1L

      酒精容器Alcohol container


      压力罐 pressure tank

      预热部份Preheat part

      预热方式Preheat method


      上部红外预热Lower infrared prehea

      预热功率Preheat power


      3kw

      温度范围temperature range


      25--240c degree

      焊锡部份Solder part

      标准焊锡炉Standard solder pot


      1

      锡槽容量Tin bath capacity


      15 kgs /炉

      锡料温控Tin temperature control


      PID

      熔热时间Melting time


      20--30 Minutes

      最高锡炉温度Highest tin furnace temperature


      350 C

      锡槽功率Tin bath power


      1.2kw

      焊锡嘴Solder nozzle

      小型波峰焊锡嘴Small wave solder nozzle


      定制形状Custom shape

      锡嘴材料Tin mouth material


      合金钢alloy steel

      氮气管理

      Nitrogen management

      加热氮气Heating nitrogen


      标配Standard

      氮气PID控制Nitrogen PID control


      0 - 350 C

      氮气消耗/锡嘴Nitrogen consumption / tin mouth


      1---2m3/小时/锡嘴1 --- 2m3 / hour / tin mouth

    • 产品名称:

      Integrated selective wave soldering

      上市日期: 2018-06-11

      Process:

      Integrated selection of solder system
