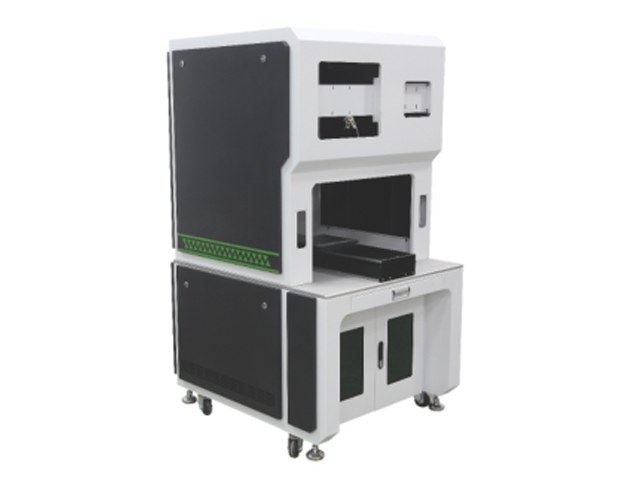

System Introduction
1. The laser is transmitted through the optical fiber, and the output port is installed above the solder ball exit. The annular cavity is provided with an inlet for high pressure gas to melt the solder ball through the laser and then the high pressure gas drips the molten solder ball, Melted solder will not be oxidized.
2. Welding high precision, good welding effect, especially for very high precision solder requirements.
Technical advantages:
1. Solder ball welding for welding small parts, welding parts attachments temperature-sensitive parts of the occasion;
2 universal clamping equipment, product replacement easy.
3 heating, droplet process fast, can be completed within 0.2s;
4. Solder the solder ball to complete melting, no splash;
5 without flux, eliminating the secondary cleaning process, to ensure maximum electronic device life;
6. solder ball diameter of the smallest 50μm, to adapt to precision welding occasions;
7. The size of the solder ball can be completed by the choice of welding of different welds;
8.High yield;
9. With the image positioning system for assembly line mass production.
