    • C300 automatic soldering machine
      C300 automatic soldering machine
      发布时间： 2018 - 06 - 11
      价格：
      0
      市场价：
      8999
      ¥
      0
      • Gantry desktop structure, stable and reliable.• 5.7-inch full touch programmer with high visibility and online/offline programming.• High-power high-frequency heating core, more rapid temperature, welding quality is more stable.• Stepper driven single-spinners deliver higher soldering accuracy.• Specialized soldering control software ensures best soldering results.
      查看更多>>
    • E300 automatic soldering machine
      E300 automatic soldering machine
      发布时间： 2018 - 06 - 11
      价格：
      0
      市场价：
      8999
      ¥
      0
      • Gantry desktop structure, stable and reliable operation;• The important components of the machine are all imported brands with excellent performance;• 7.0 inch full touch screen programmer, color screen display, strong visibility, online/offline programming;• High-power high-frequency heating core, more rapid temperature recovery, welding quality is more stable;• The feeder adopts the transmission mode of stepping and synchronous wheel, which can accurately control the precision of sending tin, and it has the function of breaking tin. When tin is delivered, the hole is uniformly pierced to t...
      查看更多>>
    • E400 automatic soldering machine
      E400 automatic soldering machine
      发布时间： 2018 - 06 - 11
      价格：
      0
      市场价：
      8999
      ¥
      0
      • Double table welding;• Gantry desktop structure, stable and reliable operation;• The important components of the machine are all imported brands with excellent performance;• 7.0 inch full touch screen programmer, color screen display, strong visibility, online/offline programming;• High-power high-frequency heating core, more rapid temperature recovery, welding quality is more stable;• The feeder adopts the transmission mode of stepping and synchronous wheel, which can accurately control the precision of sending tin, and it has the function of breaking tin. When tin is delivered, the hole is...
      查看更多>>
    • H200 automatic soldering machine
      H200 automatic soldering machine
      发布时间： 2018 - 06 - 11
      价格：
      0
      市场价：
      8999
      ¥
      0
      H200 automatic soldering machine• Two welding heads can weld two workpieces simultaneously, doubling the welding efficiency.• 5.7-inch full touch programmer with high visibility and online/offline programming.• High-power high-frequency heating core, more rapid temperature, welding quality is more stable.• Stepper driven single-spinners deliver higher soldering accuracy.
      查看更多>>
    • H500 automatic soldering machine
      H500 automatic soldering machine
      发布时间： 2018 - 06 - 11
      价格：
      0
      市场价：
      8999
      ¥
      0
      • Five welding heads can weld five workpieces simultaneously, increasing welding efficiency by four times.• Servo motor drive, precision screw drive, higher accuracy.• 5.7-inch full touch programmer with high visibility and online/offline programming.• High-power high-frequency heating core, more rapid temperature, welding quality is more stable.• Stepper driven single-spinners deliver higher soldering accuracy.
      查看更多>>
    • Product introduction
    • Product parameters
    • Scope of application
    • Commodity Reviews

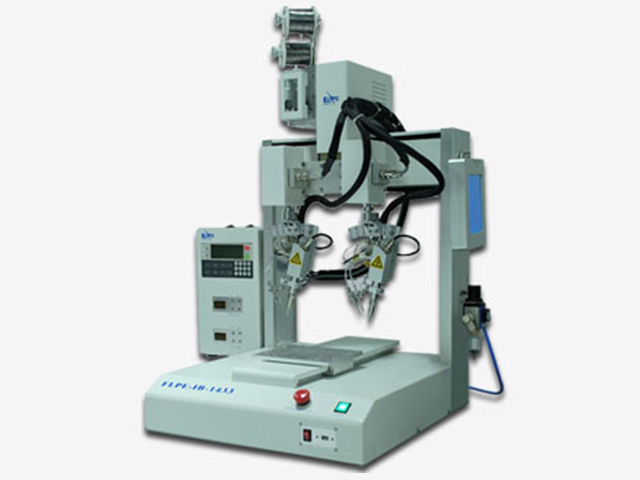

    • H200 automatic soldering machine

      • Two welding heads can weld two workpieces simultaneously, doubling the welding efficiency.

      • 5.7-inch full touch programmer with high visibility and online/offline programming.

      • High-power high-frequency heating core, more rapid temperature, welding quality is more stable.

      • Stepper driven single-spinners deliver higher soldering accuracy.

    • 产品名称

      参数描述

      H200自动焊锡机

      规格型号Specification&Model

      FLPE-IB2422

      加热方式 Heating

      高频烙铁200W

      温度范围 Range of temperature

      180-450℃

      焊接头数量 Number of irons

      2

      工作台数量 Number of workpieces

      1（同时放置两个工件）

      轴数量Number of axes

      4

      驱动系统 Drive system

      步进电机、同步带

      工作幅面 Workpiece size

      X-axis

      200mm

      Y-axis

      200mm

      Z-axis

      100mm

      R-axis

      360°

      最大速度Maximum speed

      X/Y-axis

      800/800mm/s

      Z-axis

      800mm/s

      R-axis

      360°/s

      工作台最大载重Maximum weight

      20Kg

      重复定位精度 Repeatability accuracy

      X/Y/Z-axis

      ±0.02mm

      示教模式 Teaching format

      5.7寸全触摸屏/在线/离线编程

      程序数量 Number of programs

      9999

      电源/最大功率 Power source

      AC 220V 50Hz 750VA

      气源 Air

      洁净 4~6kg/cm2

      工作环境 Working environment

      0-40℃ 湿度20-90%（无凝结）

      外形尺寸Outside dimensions

      546mm×482mm×871mm

      重量 weight

      60Kg
    • 产品名称：

      H200 automatic soldering machine
      上市日期： 2018-06-11
