TZP1 function introduction

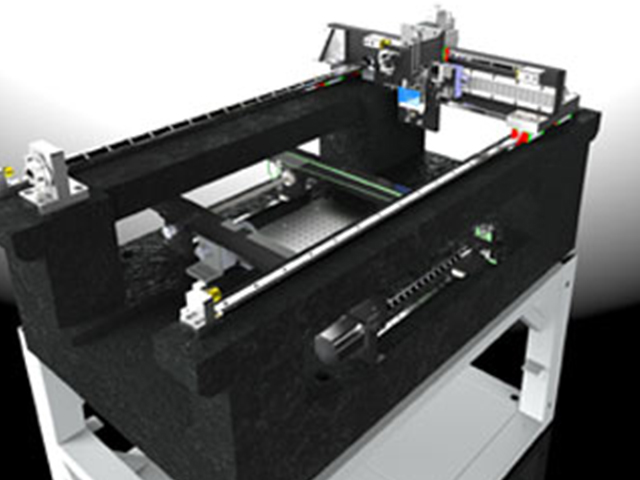

1.Using natural granite integrated design and manufacturing of ultra-high precision motion platform technology. Make sure that the P1 paste printing machine has been used for more than a decade for a long period of time without any change in movement accuracy. At the same time, the integrated structure also has excellent anti-seismic capabilities.
![TZP1]( "TZP1")
2. The world-class high-speed motion system: adopts the magnetic levitation high-precision linear motor and grating scale imported from Europe to minimize mechanical wear and ensure high-precision and high-speed performance of the X-axis for long-term use. High-speed performance up to 4M/S.
![TZP1]( "TZP1")
3. Industry-leading vision system: Using industrial digital cameras and high-quality lenses, Mark ensures the speed and accuracy of positioning.
4. Configuration of imported solder paste/silver paste special printing device can achieve a minimum dispensing diameter of 0.15mm, a minimum response time of 2ms, and for the solder paste process, can be preheated from room temperature to 60 ̊C to ensure solder paste The fluidity, completely non-contact nozzle achieves the micron precision under the condition of maximum moving speed, maintains a highly stable solder joint, accurate solder paste amount, and finally can reach the solder paste printing demand of almost all SMD components such as 0201.
![TZP1]( "TZP1")
5. Intelligent circuit board transmission system, automatic widening and splint. Complete your automated intelligent production.
6. It is very convenient to import CAD files and Gerber files, basically including all common formats.
7. Through the modular design, it is easy to go upstairs through elevators, and it is not necessary to demolish the windows and go upstairs to meet the use environment of office buildings such as laboratories and pilot centers.
8. Configure different special printing devices to meet the different needs of solder paste and silver paste.
Standard:
1. Industrial computer set
2. Solder paste special printing device set
3. Solder paste special printing device control system
4. One nozzle
5. A set of solder paste bucket
6.Mark a set of identification systems
Matching:
1. Silver paste special printing device
2. Nozzle
3. Industrial air pump
