Vacuum injection system

￥ 0

2018 - 06 - 10

High-precision measurement system

￥ 0

2018 - 06 - 10

The FL-D36 high-precision piston metering head is a versatile metering system that can handle all types of watering and can handle different single and two-component glues like silicone, epoxy, and polyurethane.The FL-D36 high-precision piston metering head controls the proportion of glue by measuring volume and is suitable for handling single and double component materials. According to the required amount of glue injection and mixing ratio, select the accurate size and volume of the measuring cylinder. When the two-component material is fed, the proportion of the glue is kept constant throughout the dispensing process by the precise pushing stroke of the measuring cylinder. The two-component material passes through the static mixing tube at the same time, and is fully mixed in the static...

Vacuum stock preparation system

￥ 0

2018 - 06 - 10

FL-P20 automatic vacuum stocking system is an automatic system that integrates glue processing and feeding. It can handle different single and two-component glues like silicone, epoxy, and polyurethane.The FL-P20 vacuum stocking system eliminates the influence of the external environment on the glue itself by creating a high-vacuum environment, so that the glue that easily reacts with air or easily absorbs air moisture is sealed. This creates a priority for high-quality injection molding, even for certain types of glue. At the same time, the constant vacuum environment can effectively defoam the glue in a long-term and stable manner, remove the air and water vapor in the early glue when the glue is encapsulated, and greatly improve the glue injection performance of the glue.

Offline vacuum potting machine

￥ 0

2018 - 06 - 10

Off-line vacuum double liquid gluing machine is a combination of double liquid gluing system and vacuum infusion system. The two-fluid system is controlled by PLC and the ratio of metering pump is controlled by cylinder and stepping motor. The glue storage tank for glue can be equipped with functions such as heating, stirring, vacuuming, and automatic glue adding. The dispensing valve adopts static or dynamic stirring to make the glue evenly mixed.Vacuum box made of precision 25MM thick aluminum plate, airtight. There is a transparent glass window on the door, which can easily see the processing inside the box. The tool loading plate in the box is driven by a motor, with high precision and a small footprint. Easy to program, easy to learn.The operation is simple and the glue filling effect...

Dispensing machine for vision positioning

￥ 0

2018 - 06 - 05

Dispensing machine for vision positioning1. In order to achieve high-precision dispensing, an image detection and height detection device can be added to a standard dispenser.2. The image equipment and the height equipment can detect the position of the target dispensing product, perform position correction on the target dispensing product, and then correct the movement trajectory of the manipulator to achieve the purpose of high-precision dispensing.3, the use of contour visual positioning technology, no fixtures, dispensing products can be placed anywhere, that is, put the point, simple, fast and stable.

最新上架

B013 Wall-Amount First Aid Cabinet for Medicine Storage with Handle

￥ 0

2019 - 04 - 11

Glosen Medium Household Aluminum and MDF First Aid Kit Storage Box B0136 reasons why do you choose Glosen first aid box? (1) High quality aluminum alloy, MDF and organic glass, environmentally friendly material(2) Magnetic corner of the door to make sure the door is heavily closed, the effective protection of drugs and medicine touched or mistaken eating by children (for B010, B011 and B013 only) . For B012 and B014, they have safety lock to assure the safety of the medicines.(3) Light weight and easy to carry, portable (4) Dual layers for large storage capacity to meet your needs(5) Different cells for easy classfication of the drugs and medicine(6) Aluminum alloy sides design for long time lasting and durable

Dispensing machine for vision positioning

￥ 0

2018 - 06 - 05

Hand-held lock screw machine

￥ 0

2018 - 06 - 10

Hand-held lock screw machine is beautiful, light weight, high flexibility, no scratch on the product; the lock process has no waiting time, the machine will automatically turn the screw to the mouth under the screwdriver, as long as the alignment of the lock to be locked Product hole position, under the pressure can be locked, no repeated feeding phenomenon, easy to use, and versatility.

Double-station double-supply automatic screw locking machine (suction type)

￥ 0

2018 - 06 - 10

• wide range of applications, can lock two different screws at the same time;• it can detect sliding teeth, leakage lock and floating lock, and the torque can be adjusted;• fast locking speed, 1.2 seconds/piece;• simple operation to manage several machines at the same time;• strong versatility. Replace screw conveying module, suction nozzle and batch head, which can adapt to M1.0~M3 screw locking;• convenient to switch the working mode with the assembly line before and after operation to realize the impersonal operation;• support USB interface.

OEM Soldering Tip

￥ 0

2018 - 06 - 19

产品特点
产品描述
产品图片

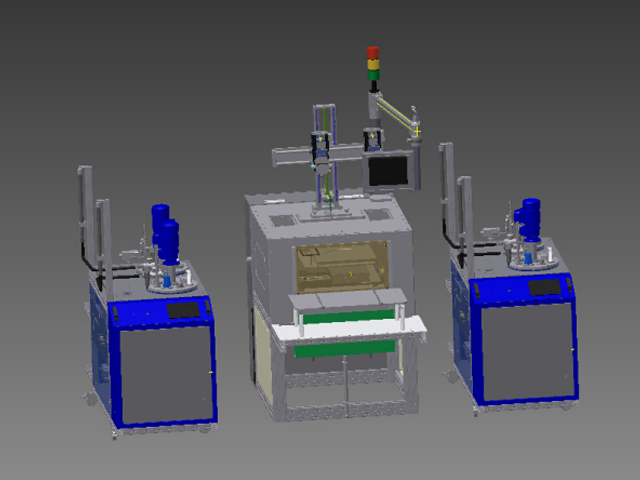

The FL-VC20 three-axis vacuum box filling station for vacuum glue injection machine is a comprehensive vacuum glue injection machine system, which can complete the application of almost all products, meet the physical parameters and electrical parameters of various harsh glue curing. Therefore, the three-axis vacuum chamber glue injection station for vacuum injection molding machines is a set of more versatile equipment.

The working principle is to first pump the vacuum in the three-axis vacuum box. When the vacuum value is reached, the high-precision injection head starts to inject the electronic products into the vacuum box. When the injection is completed, the pressure is relieved. Internally, the negative pressure is formed relative to the external environment of the product after the pressure is released, so that the glue previously injected into the product is sufficiently pressed into the inside of the coil or the PIN corner where the glue cannot penetrate, and a good injection of glue is achieved. Compactness maximizes the overall performance of the product being injected, and also gives full play to the physical or chemical properties of the glue used.

The selection of the three-axis vacuum box glue injection station requires the use of a vacuum stocker and the effect will be good.
